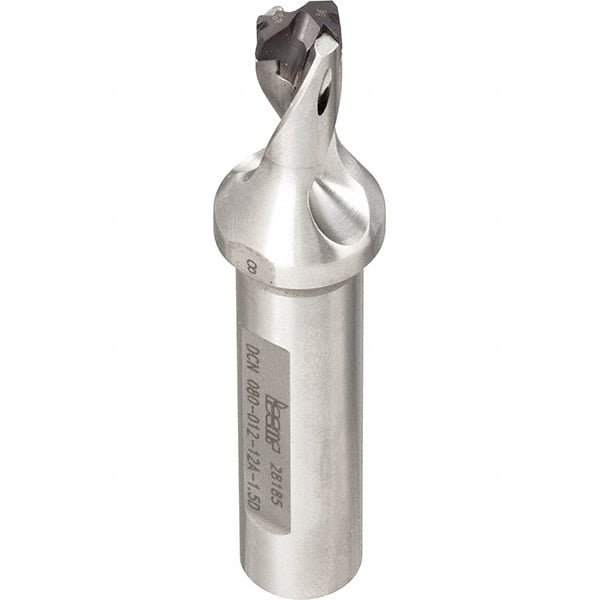

Iscar - 1.024 to 1.059" Diam, 1.5xD, 1.73" Max Drill Depth, 1-1/4" Shank Diam, 5.52" OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICM, ICP Insert, 26 Seat Size, DCN Toolholder, Series SumoCham
Item #: 55740161
Brand: Iscar
Model #: 3203115
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 1.0240 |
| Maximum Drill Diameter (Decimal Inch) | 1.0590 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.7300 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | FCP; HCP-IQ; ICK; ICM; ICP |
| Insert Seat Size | 26 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (Decimal Inch) | 0.1860 |
| Flute Length (Decimal Inch) | 1.7300 |
| Body Length (Decimal Inch) | 3.1600 |
| Overall Length (Decimal Inch) | 5.5200 |
| Shank Length (Decimal Inch) | 2.3600 |
