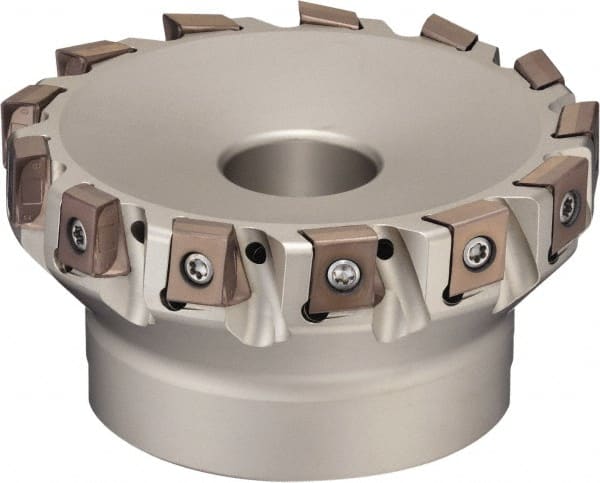

Sumitomo - 12 Inserts, 5" Cut Diam, 7-1/2" Arbor Diam, 12mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2-1/2" High, LNEX1306.. Insert Compatibility, Through Coolant, Series TSX
Item #: 55743504
Brand: Sumitomo
Model #: 2200WAQ
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (Inch) | 7-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 7.5000 |
| Lead Angle | 0/90 |
| Overall Height (Inch) | 2-1/2 |
| Insert Compatibility | LNEX1306.. |
| Series | TSX |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | TSX45000 |
| Number of Flutes | 12 |
