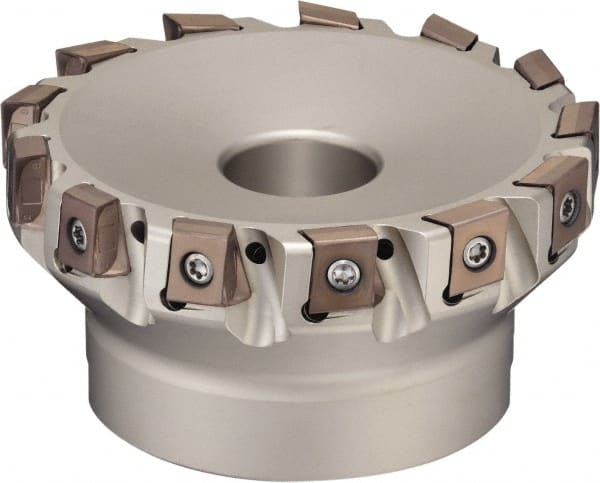

Sumitomo - 13 Inserts, 4" Cut Diam, 4.85" Arbor Diam, 12mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2" High, LNEX1306.. Insert Compatibility, Through Coolant, Series TSX
Item #: 55743587
Brand: Sumitomo
Model #: 2200WAW
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 4.8500 |
| Lead Angle | 0/90 |
| Overall Height (Inch) | 2 |
| Insert Compatibility | LNEX1306.. |
| Series | TSX |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 13 |
| Insert Holding Method | Screw |
| Cutter Style | TSXF44000 |
| Number of Flutes | 13 |
