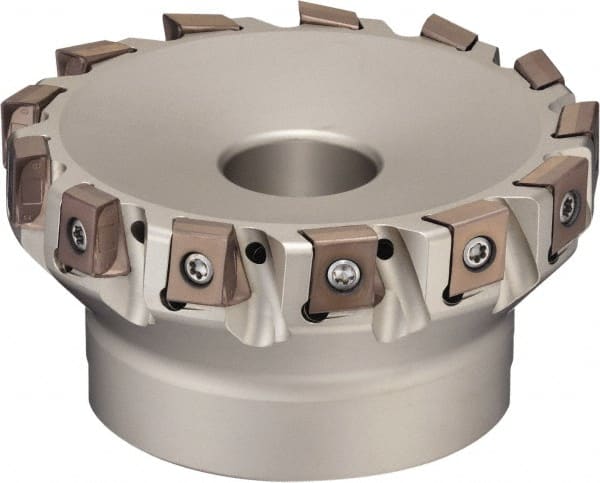

Sumitomo - 10 Inserts, 2-1/2" Cut Diam, 1.1" Arbor Diam, 12mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, LNEX0804.. Insert Compatibility, Through Coolant, Series TSX
Item #: 55743637
Brand: Sumitomo
Model #: 2200WAJ
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Decimal Inch) | 1.1000 |
| Lead Angle | 0/90 |
| Overall Height (Inch) | 1-3/4 |
| Insert Compatibility | LNEX0804.. |
| Series | TSX |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | TSXF32500 |
| Number of Flutes | 10 |
