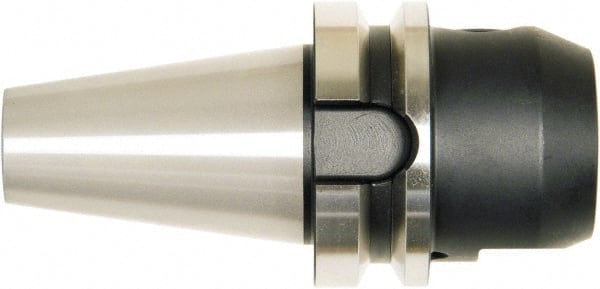

Bilz - BT40 1-1/4" Shank Diam Taper Shank 1-1/4" Hole End Mill Holder/Adapter - 2-1/2" Nose Diam, 3.35" Projection, M16 Drawbar, Through-Spindle, Through-Bore & DIN Flange Coolant
Item #: 55771950
Brand: Bilz
Model #: 66651341M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Hole Diameter (Inch) | 1-1/4 |
| Nose Diameter (Inch) | 2-1/2 |
| Projection (Decimal Inch) | 3.3500 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 65.00 |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 5.9240 |
| Balanced to (RPM) | 8000 |
| TIR (mm) | 0.003 |
| Coolant Type | Through-Spindle, Through-Bore & DIN Flange |
| Drawbar Thread Size | M16 |
