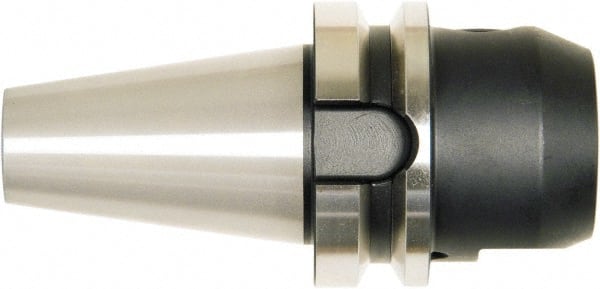

Bilz - BT40 1/4" Shank Diam Taper Shank 1/4" Hole End Mill Holder/Adapter - 0.779" Nose Diam, 2.55" Projection, M16 Drawbar, Through-Spindle, Through-Bore & DIN Flange Coolant
Item #: 55771992
Brand: Bilz
Model #: 66651331M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Hole Diameter (Inch) | 1/4 |
| Nose Diameter (Inch) | 0.7790 |
| Projection (Decimal Inch) | 2.5500 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 33.00 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Decimal Inch) | 5.1240 |
| Balanced to (RPM) | 8000 |
| TIR (mm) | 0.003 |
| Coolant Type | Through-Spindle, Through-Bore & DIN Flange |
| Drawbar Thread Size | M16 |
