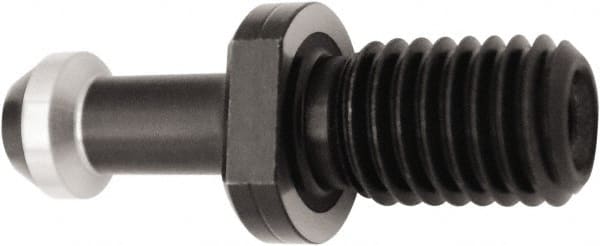

Accupro - C Style, CAT40 Taper, 5/8-11 Thread, 15° Angle Radius, High Torque Retention Knob - 2.0118" OAL, 3/4" Knob Diam, 0.7913" Flange Thickness, 1.0276" from Knob to Flange, 0.2756" Coolant Hole, Through Coolant
Item #: 55833321
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
High torque knobs improve the fit of the toolholder with the spindle. They prevent the small end of the toolholder from expanding by using a precision pilot and place the force of the threads into a deeper cross-section of material in the toolholder.
| Product Specifications | |
|---|---|
| Type | High Torque |
| Taper Size | CAT40 |
| Thread Size | 5/8-11 |
| Angle Radius | 15.00 |
| Knob Diameter (Decimal Inch) | 0.7480 |
| Through Coolant | Yes |
| Style | C |
| Neck Diameter (Decimal Inch) | 0.5511 |
| Overall Length (Decimal Inch) | 2.0118 |
| Knob to Flange Length (Decimal Inch) | 1.0276 |
| Flange Thickness (Decimal Inch) | 0.7913 |
| Coolant Hole Diameter (Decimal Inch) | 0.2756 |
