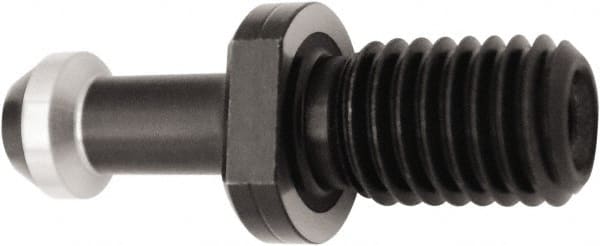

Accupro - C Style, BT40 Taper, M16x2 Thread, 45° Angle Radius, High Torque Retention Knob - 2.3622" OAL, 0.5906" Knob Diam, 1.1024" Flange Thickness, 1.378" from Knob to Flange, 0.6693" Pilot Diam, 0.1378" Coolant Hole, Through Coolant
Item #: 55833586
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
High torque knobs improve the fit of the toolholder with the spindle. They prevent the small end of the toolholder from expanding by using a precision pilot and place the force of the threads into a deeper cross-section of material in the toolholder.
| Product Specifications | |
|---|---|
| Type | High Torque |
| Taper Size | BT40 |
| Thread Size | M16x2 |
| Angle Radius | 45.00 |
| Knob Diameter (Decimal Inch) | 0.5906 |
| Through Coolant | Yes |
| Style | C |
| Neck Diameter (Decimal Inch) | 0.3937 |
| Pilot Diameter (Decimal Inch) | 0.6693 |
| Overall Length (Decimal Inch) | 2.3622 |
| Knob to Flange Length (Decimal Inch) | 1.3780 |
| Flange Thickness (Decimal Inch) | 1.1024 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
