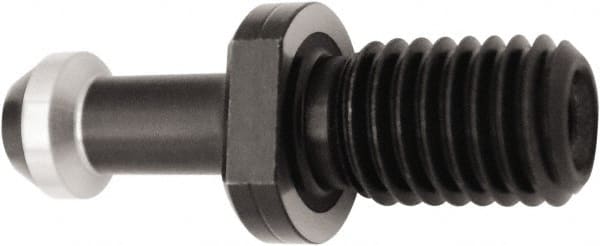

Accupro - C Style, CAT50 Taper, 1-8 Thread, 60° Angle Radius, High Torque Retention Knob - 3.3524" OAL, 0.9055" Knob Diam, 1.3839" Flange Thickness, 1.7776" from Knob to Flange
Item #: 55833610
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
High torque knobs improve the fit of the toolholder with the spindle. They prevent the small end of the toolholder from expanding by using a precision pilot and place the force of the threads into a deeper cross-section of material in the toolholder.
| Product Specifications | |
|---|---|
| Type | High Torque |
| Taper Size | CAT50 |
| Thread Size | 1-8 |
| Angle Radius | 60.00 |
| Knob Diameter (Decimal Inch) | 0.9055 |
| Through Coolant | No |
| Style | C |
| Neck Diameter (Decimal Inch) | 0.6693 |
| Overall Length (Decimal Inch) | 3.3524 |
| Knob to Flange Length (Decimal Inch) | 1.7776 |
| Flange Thickness (Decimal Inch) | 1.3839 |
