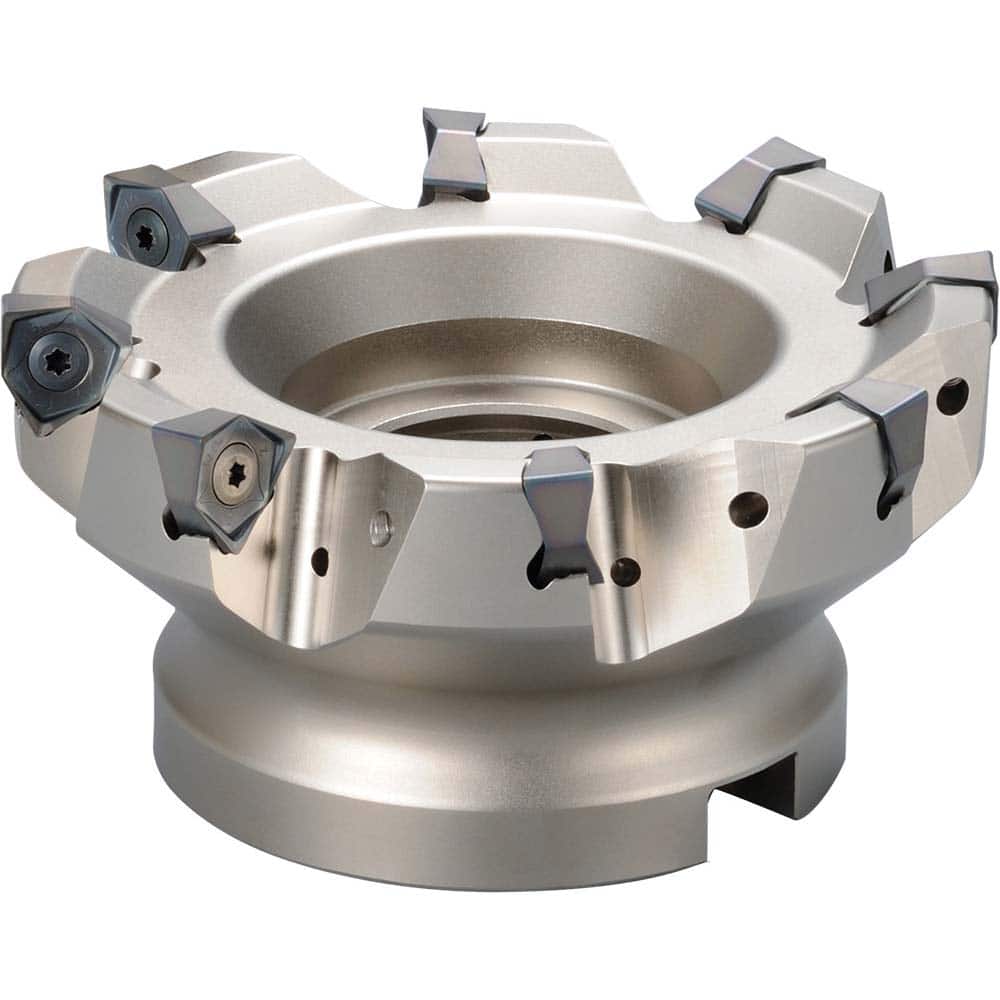

Kyocera - Indexable Square-Shoulder Face Mills; Cutting Diameter (Inch): 5 ; Cutting Diameter (Decimal Inch): 5.0000 ; Arbor Hole Diameter (Inch): 1.5 ; Lead Angle: 90 ; Overall Height (mm): 63.00000 ; Insert Compatibility: WNEU080608EN-GL; WNMU080608EN-
Item #: 55840680
Brand: Kyocera
Model #: 8606141
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (Inch): 5 ; Cutting Diameter (Decimal Inch): 5.0000 ; Arbor Hole Diameter (Inch): 1.5 ; Lead Angle: 90 ; Overall Height (mm): 63.00000 ; Insert Compatibility: WNEU080608EN-GL; WNMU080608EN-GM; WNMU080608EN-SM; WNMU080608EN-GH; WNGT080608FN-AM
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (Inch) | 1.5 |
| Lead Angle | 90 |
| Overall Height (mm) | 63.00000 |
| Insert Compatibility | WNEU080608EN-GL; WNMU080608EN-GM; WNMU080608EN-SM; WNMU080608EN-GH; WNGT080608FN-AM |
| Series | MFWN |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | MFWN |
| Number of Flutes | 12 |
| Keyway Width (Inch) | 0.625 |
| Keyway Depth (Inch) | 0.3929 |
| Keyway Depth (Decimal Inch) | 0.3929 |
| Pitch | Extra Fine |
| ISO Number | MFWN905000R-12T |
| Counterbore Diameter (Decimal Inch) | 2.1750 |
| Toolholder Material | Steel |
