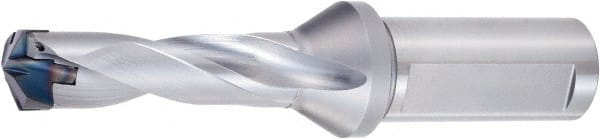

OSG - 25 to 25.99mm Diam, 3xD, 76.5mm Max Depth, 32mm Shank Diam, 112mm Flute, Replaceable Tip Drill - PXDH\x85. Insert, 13 Seat Size, PXDZ Toolholder, Series 78310
Item #: 55895833
Brand: OSG
Model #: 48173013
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | 78310 |
| Minimum Drill Diameter (mm) | 25.00 |
| Maximum Drill Diameter (mm) | 25.99 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 76.50 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | PXDH . |
| Insert Seat Size | 13 |
| Toolholder Style | PXDZ |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (mm) | 112.00 |
| Body Length (mm) | 118.50 |
| Toolholder Material | High Speed Steel |
| Shank Length (mm) | 60.00 |
