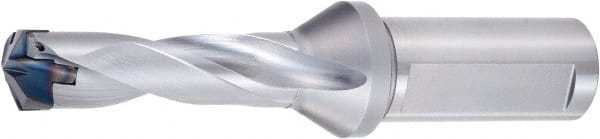

OSG - 18 to 18.99mm Diam, 3xD, 55.5mm Max Depth, 25mm Shank Diam, 81.4mm Flute, Replaceable Tip Drill - PXDH\x85. Insert, 6 Seat Size, PXDZ Toolholder, Series 78310
Item #: 55895908
Brand: OSG
Model #: 48173006
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | 78310 |
| Minimum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (mm) | 18.99 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 55.50 |
| Shank Diameter (mm) | 25.00 |
| Insert Style | PXDH . |
| Insert Seat Size | 6 |
| Toolholder Style | PXDZ |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (mm) | 81.40 |
| Body Length (mm) | 87.90 |
| Toolholder Material | High Speed Steel |
| Shank Length (mm) | 56.00 |
