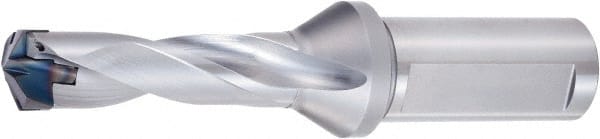

OSG - 14.5 to 14.99mm Diam, 3xD, 44.5mm Max Depth, 16mm Shank Diam, 65.5mm Flute, Replaceable Tip Drill - PXDH\x85. Insert, 2 Seat Size, PXDZ Toolholder, Series 78310
Item #: 55895940
Brand: OSG
Model #: 48173002
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | 78310 |
| Minimum Drill Diameter (mm) | 14.50 |
| Maximum Drill Diameter (mm) | 14.99 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 44.50 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | PXDH . |
| Insert Seat Size | 2 |
| Toolholder Style | PXDZ |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Flute Length (mm) | 65.50 |
| Body Length (mm) | 72.00 |
| Toolholder Material | High Speed Steel |
| Shank Length (mm) | 48.00 |
