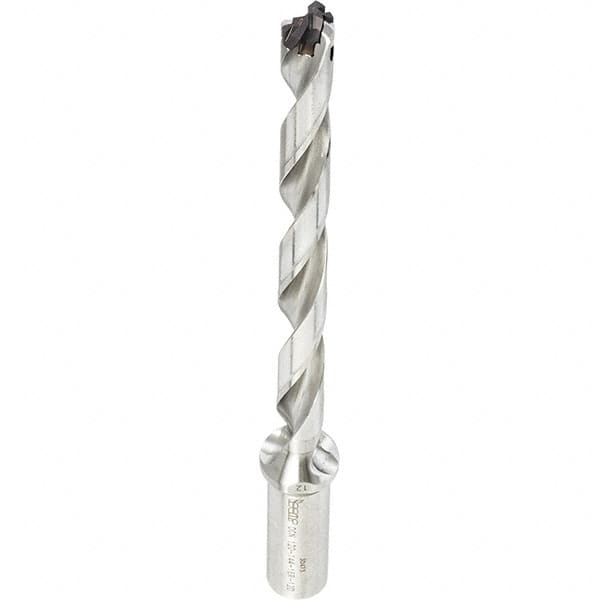

Iscar - 0.433 to 0.45" Diam, 12xD, 5.28" Max Drill Depth, 5/8" Shank Diam, 7.74" OAL, Replaceable Tip Drill - FCP, HCP-IQ, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M, QCP-2M Insert, 11 Seat Size, DCN Toolholder, Series SumoCham
Item #: 55904668
Brand: Iscar
Model #: 3202827
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.4330 |
| Maximum Drill Diameter (Decimal Inch) | 0.4500 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 5.2800 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | FCP; HCP-IQ; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M; QCP-2M |
| Insert Seat Size | 11 |
| Toolholder Style | DCN |
| Shank Type | Cylindrical Shank |
| Tip Length (Decimal Inch) | 0.0790 |
| Flute Length (Decimal Inch) | 5.2800 |
| Body Length (Decimal Inch) | 5.8500 |
| Overall Length (Decimal Inch) | 7.7400 |
| Shank Length (Decimal Inch) | 1.8900 |
