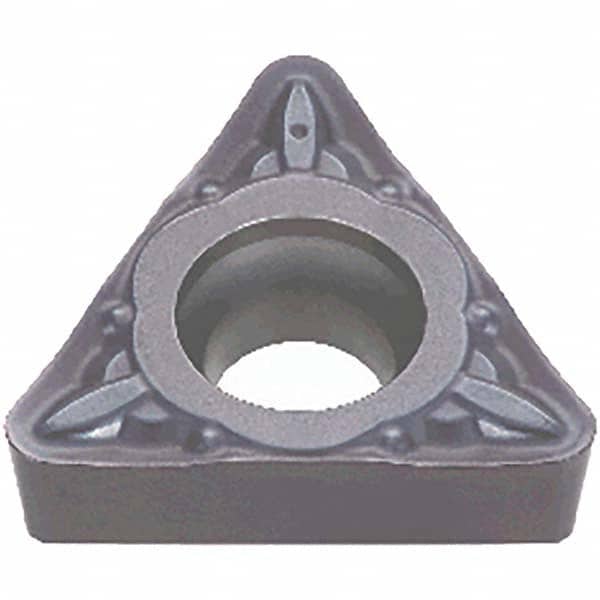

Turning Insert
Item #: 55940951
Brand: Tungaloy
Model #: 6864926
Product Specifications
| Insert Style | TCMT |
| Insert Shape Code | T |
| Insert Size Code | 110304 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | M |
| Manufacturer Grade | AH725 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Maximum Depth of Cut (mm) | 2.00 |
| Inscribed Circle (mm) | 6.35 |
| Insert Thickness | 3.18 |
| Corner Radius (mm) | 0.40 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | TCMT |
| Rake | Positive |
| Insert Length (mm) | 11.00 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | TCMT110304-PSS |
| Standards | ISO |
| Chip Breaker | PSS |
| Coating/Finish | Coated |
