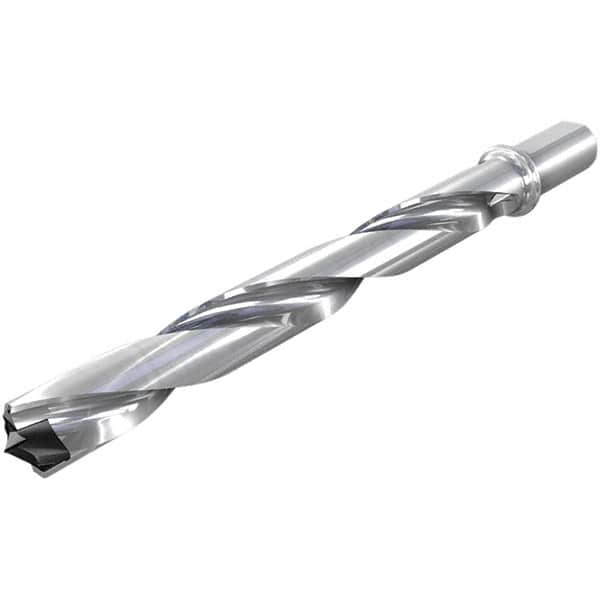

Iscar - 1-7/32 to 1.26" Diam, 4xD, 4.88" Max Drill Depth, 1-1/4" Shank Diam, 9.17" OAL, Replaceable Tip Drill - SOGX-T, SOMT-DT, SOMT-GF, SOMT-HD Insert, DR Toolholder, Series DR-Twist
Item #: 55962278
Brand: Iscar
Model #: 3260041
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | DR-Twist |
| Minimum Drill Diameter (Decimal Inch) | 1.2190 |
| Maximum Drill Diameter (Decimal Inch) | 1.2600 |
| Drill Depth by Diameter Ratio | 4xD |
| Maximum Drill Depth (Decimal Inch) | 4.8800 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | SOGX-T; SOMT-DT; SOMT-GF; SOMT-HD |
| Toolholder Style | DR |
| Flute Length (Decimal Inch) | 4.8800 |
| Body Length (Decimal Inch) | 6.1700 |
| Overall Length (Decimal Inch) | 9.1700 |
| Shank Length (Decimal Inch) | 3.0000 |
