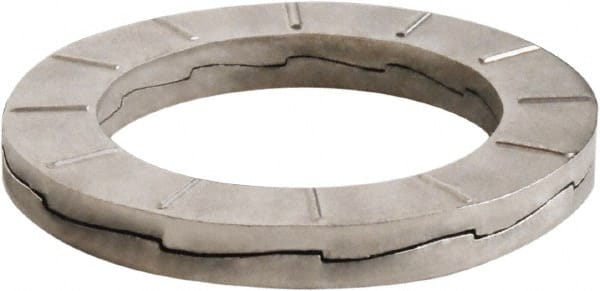

DISC-LOCK - 7/8", 1.47" OD, Uncoated, Stainless Steel Wedge Lock Washer - Grade 316L, 0.878 to 0.888" ID
Item #: 56063019
Brand: DISC-LOCK
Model #: DL-M22-7/8SS-50
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Screw Size (mm) | M22 |
| Screw Size (Inch) | 7/8 |
| System of Measurement | Inch |
| Outside Diameter (Decimal Inch) | 1.4700 |
| Material | Stainless Steel |
| Material Grade | 316L |
| Finish/Coating | Uncoated |
| Minimum Inside Diameter (Decimal Inch) | 0.8780 |
| Maximum Inside Diameter (Decimal Inch) | 0.8880 |
| Minimum Outside Diameter (Decimal Inch) | 1.4650 |
| Maximum Outside Diameter (Decimal Inch) | 1.4750 |
