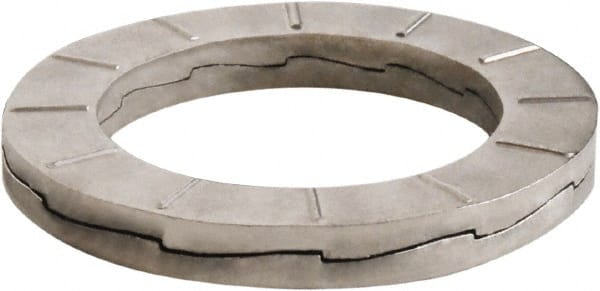

DISC-LOCK - 1", 1.626" OD, Uncoated, Stainless Steel Wedge Lock Washer - Grade 316L, 1.01 to 1.02" ID
Item #: 56063043
Brand: DISC-LOCK
Model #: DL-M24-1SS-50
Exact Tooling IR#: 04
Features and Benefits
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Screw Size (mm) | M24 |
| Screw Size (Inch) | 1 |
| System of Measurement | Inch |
| Outside Diameter (Decimal Inch) | 1.6260 |
| Material | Stainless Steel |
| Material Grade | 316L |
| Finish/Coating | Uncoated |
| Minimum Inside Diameter (Decimal Inch) | 1.0100 |
| Maximum Inside Diameter (Decimal Inch) | 1.0200 |
| Minimum Outside Diameter (Decimal Inch) | 1.6210 |
| Maximum Outside Diameter (Decimal Inch) | 1.6310 |
