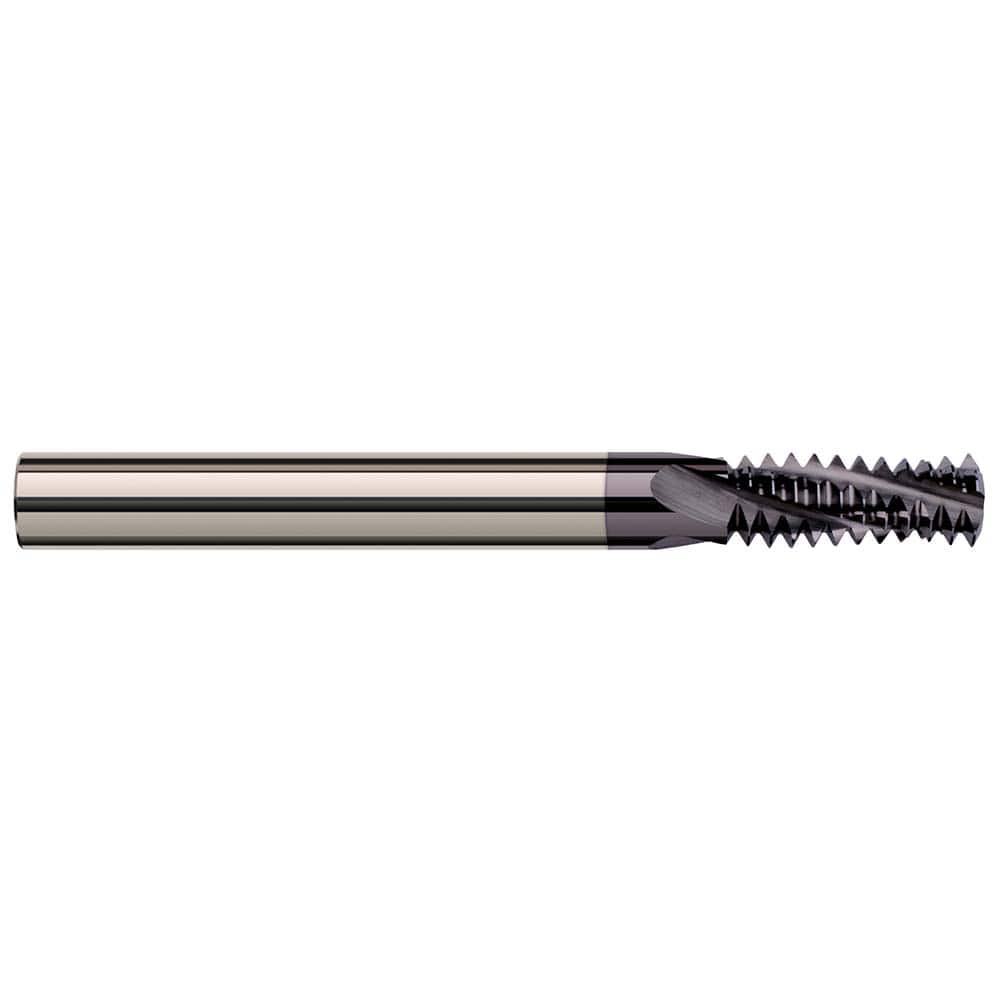

Harvey Tool - 9/16-12 Internal/External 12 TPI 3/8" Shank 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 56076110
Brand: Harvey Tool
Model #: 70092-C3
Product Specifications
| Threads Per Inch | 12 |
| Material | Solid Carbide |
| Thread Size (Inch) | 9/16-12 |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 3/8 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.3700 |
| Length of Cut (Decimal Inch) | 0.8750 |
| Length of Cut (Inch) | 7/8 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter | 9/16 |
| Minimum Nominal Diameter (Decimal Inch) | 0.5625 |
| Overall Length (Decimal Inch) | 3.50000 |
| Overall Length (Inch) | 3-1/2 |
