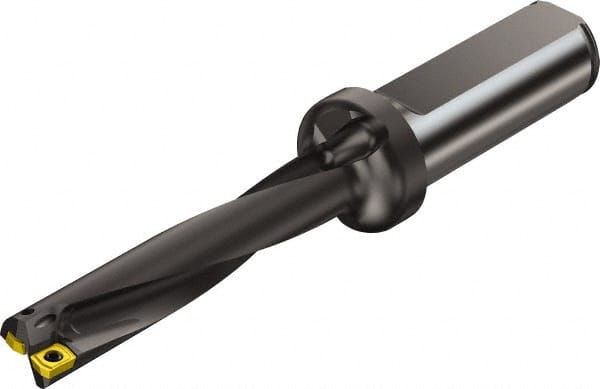

Sandvik Coromant - 90.39mm Max Drill Depth, 5xD, 0.687" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 56131584
Brand: Sandvik Coromant
Model #: 5724461
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-05 |
| Drill Diameter (Decimal Inch) | 0.6870 |
| Maximum Drill Depth (mm) | 90.39 |
| Maximum Drill Depth (Decimal Inch) | 3.5587 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 2.6 |
| Insert Size (Decimal Inch) | 0.1024 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7272 |
| Maximum Drill Diameter (mm) | 17.45 |
| Overall Length/Projection (mm) | 161.82 |
| Overall Length/Projection (Decimal Inch) | 6.3707 |
| Insert Compatibility (Outside or Peripheral) | 03P |
| Flute Length (mm) | 100.80 |
| Flute Length (Decimal Inch) | 3.9685 |
| Body Length (Decimal Inch) | 3.5720 |
| Body Length (mm) | 90.73 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Radius (Decimal Inch) | 0.3435 |
| Series | CoroDrill 880 |
