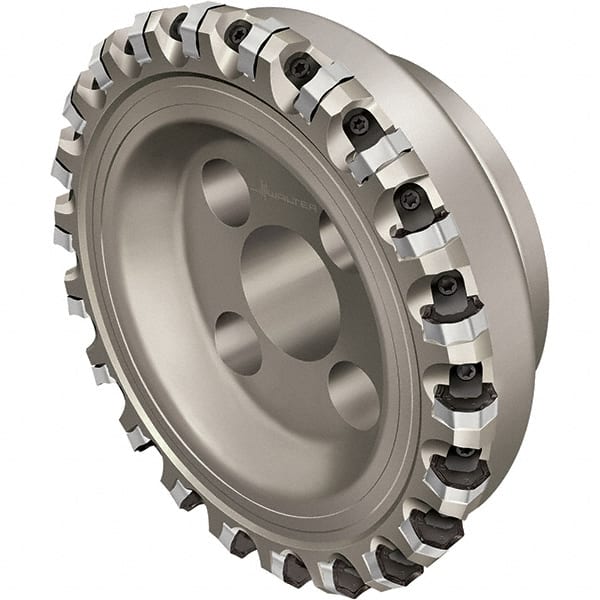

Walter - 160mm Cut Diam, 40mm Arbor Hole, 6mm Max Depth of Cut, Indexable Chamfer & Angle Face Mill - 20 Inserts, XNHF 0906 . . Insert, Right Hand Cut, 20 Flutes, Series Xtra-tec
Item #: 56144579
Brand: Walter
Model #: 5873946
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | XNHF 0906 . . |
| Series | Xtra-tec |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Wedge |
| Cutter Style | F4045 |
| Number of Flutes | 20 |
| Keyway Width (mm) | 10.00 |
| Keyway Width (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0472 |
| Complete Insert Compatibility | XNHF 090612-D27; XNHF 090612-D57; XNHF 090612-D67; XNHF 0906ANN-D27; XNHF 0906ANN-D57; XNHF 0906ANN-D67 |
