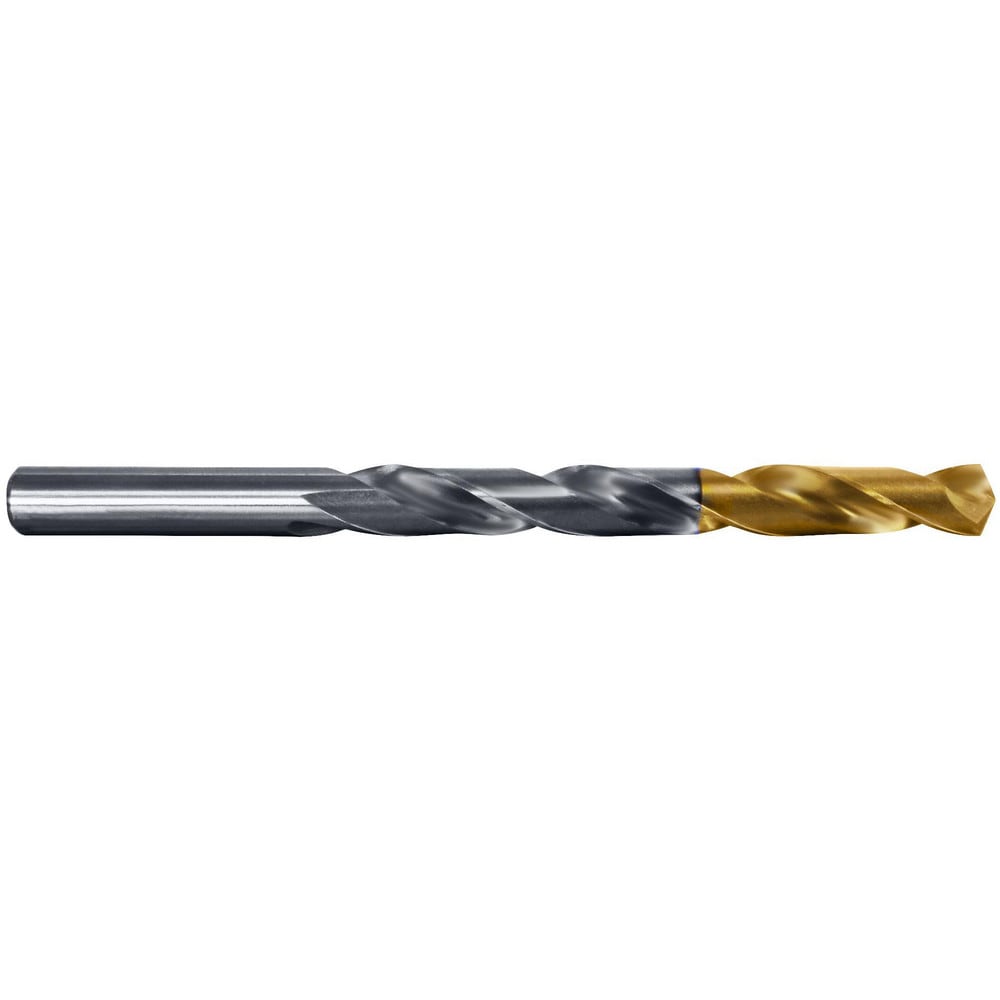

Jobber Drill: 7/64" Dia, 135 deg Point, Cobalt
Item #: 80472962
Brand: Cle-Line
Model #: C66004
Product Specifications
| Drill Bit Size (Inch) | 7/64 |
| Drill Bit Size (Decimal Inch) | 0.1094 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Cast Iron; CFRP Materials |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 1-1/2 |
| Primary Workpiece Material Code | P; K; N |
| Shank Diameter (Decimal Inch) | 0.1094 |
| Overall Length (mm) | 66.68 |
| Overall Length (Inch) | 2-5/8 |
| Overall Length (Decimal Inch) | 2.6250 |
| Flute Length (mm) | 38.10 |
| Flute Length (Decimal Inch) | 1.5000 |
| Series | 1501-TT |
| Tool Application | Drilling |
| Shank Diameter (mm) | 2.78 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Double Margin | No |
| Specification Designation | ANSI |
| UNSPSC Code | 20111614 |
| Country of Origin | VARIOUS |
