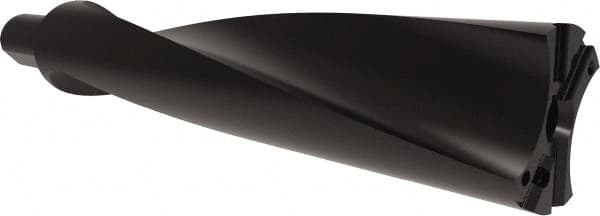

Allied Machine and Engineering - Series APX 83, 5xD, 2" Shank Diam, Drill Body - 19-5/16" Drill Body Length to Flange, W8305H Toolholder, 23-13/16" OAL, 19.3125" Drill Body Length, Weldon Flat Shank, Through Coolant
Item #: 56260011
Brand: Allied Machine and Engineering
Model #: W8305H-200F
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | APX 83 |
| Drill Depth by Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Drill Body Length to Flange (Decimal Inch) | 19.3125 |
| Toolholder Style | W8305H |
| Overall Length (Decimal Inch) | 23.8125 |
| Gage Length (Decimal Inch) | 19.3125 |
| Shank Type | Weldon Flat |
| Shank Length (Decimal Inch) | 4.5000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Size (Inch) | 1/4 |
