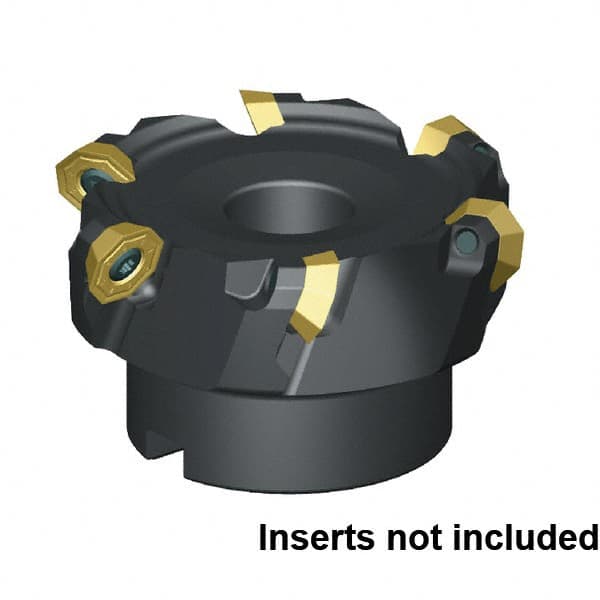

Kennametal - 7 Inserts, 2-1/2" Cut Diam, 3/4" Arbor Diam, 3.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 45° Lead Angle, 39.88mm High, OFPT06L5AFENGB Insert Compatibility, Through Coolant, Series KSOM
Item #: 56301468
Brand: Kennametal
Model #: 5359023
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.50 |
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 45 |
| Overall Height (mm) | 39.88 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | OFPT06L5AFENGB |
| Series | KSOM |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw/Clamp |
| Number of Flutes | 7 |
| Hub Diameter (mm) | 54.45 |
| Hub Diameter (Decimal Inch) | 2.1440 |
| Maximum Body Diameter (Decimal Inch) | 2.6730 |
| Maximum RPM | 10030 |
| Toolholder Material | Steel |
