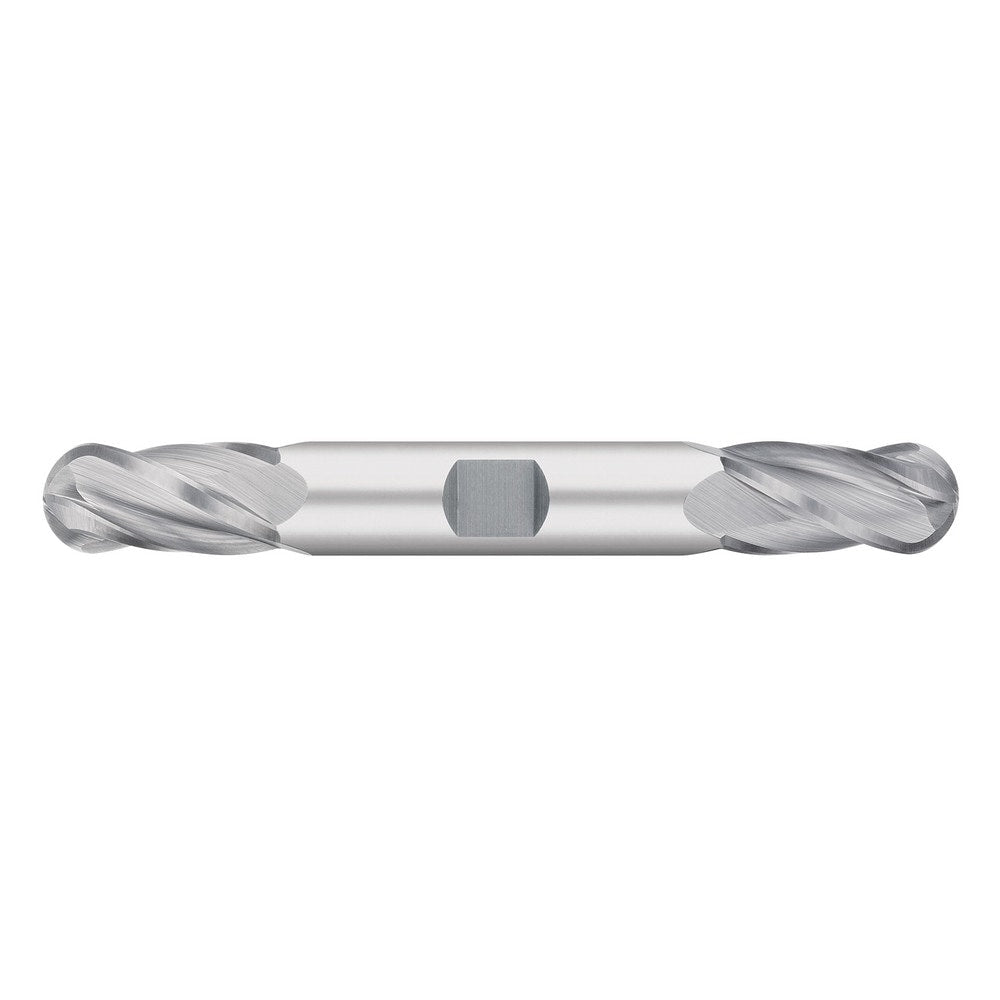

Ball End Mill: 3/8" Dia, 3/4" LOC, 4 Flute, Solid Carbide
Item #: 07249964
Brand: Titan USA
Model #: TC13524
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 3/4 |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 3-1/2 |
| Shank Diameter (Inch) | 3/8 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (Decimal Inch) | 3.5000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 1.0000 |
| Length Type | Standard |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Nose Radius (Decimal Inch) | 0.1875 |
| Reach Length (Inch) | 3/4 |
| Reach Length (Decimal Inch) | 0.7500 |
| Mill Diameter Tolerance | +0.0000/-0.0020 in |
| Shank Diameter Tolerance | h6 |
| Maximum Helix Angle | 30 |
| Minimum Helix Angle | 30 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Carbide - 4 Flute - Ball - 30° Helix - Double-Ended, General Purpose End Mills |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | Uncoated |
| Single Or Double End | Double |
| Shank Type | Weldon Flat |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Manufacturers Catalog Number | TC13524 |
| System Of Measurement | Fractional Inch |
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 3/4 |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 3-1/2 |
| Shank Diameter (Inch) | 3/8 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (Decimal Inch) | 3.5000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 1.0000 |
| Length Type | Standard |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Nose Radius (Decimal Inch) | 0.1875 |
| Reach Length (Inch) | 3/4 |
| Reach Length (Decimal Inch) | 0.7500 |
| Mill Diameter Tolerance | +0.0000/-0.0020 in |
| Shank Diameter Tolerance | h6 |
| Maximum Helix Angle | 30 |
| Minimum Helix Angle | 30 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Carbide - 4 Flute - Ball - 30° Helix - Double-Ended, General Purpose End Mills |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | Uncoated |
| Single Or Double End | Double |
| Shank Type | Weldon Flat |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Manufacturers Catalog Number | TC13524 |
| System Of Measurement | Fractional Inch |
| MSC Part # | 07249964 |
| Mfr Part # | TC13524 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
