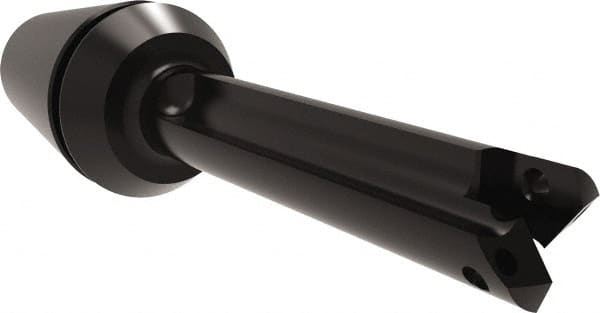

Allied Machine and Engineering - Series Y, 3/8 to 27/64" Diam, ER20 ER Collet, Straight Flute Spade Drill - 1-3/8" Max Depth, 1-29/32" Body Length, 3-15/64" OAL, Short Length, Through Coolant
Item #: 56323355
Brand: Allied Machine and Engineering
Model #: 210Y0S-20ER
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | Y |
| Minimum Drill Diameter (Inch) | 3/8 |
| Minimum Drill Diameter (Decimal Inch) | 0.3750 |
| Maximum Drill Diameter (Inch) | 27/64 |
| Maximum Drill Diameter (Decimal Inch) | 0.4219 |
| Shank Type | ER Collet |
| Shank Taper Size | ER20 |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 3-15/64 |
| Overall Length (Decimal Inch) | 3.2344 |
| Maximum Drill Depth (Inch) | 1-3/8 |
| Maximum Drill Depth (Decimal Inch) | 1.3750 |
| Flute Type | Straight Flute |
| Body Length (Inch) | 1-29/32 |
| Body Length (Decimal Inch) | 1.9063 |
| Through Coolant | Yes |
