Brand: Widia / Part #: 2022922
Item #: 99765414
Brand: Widia
Model #: 2022922

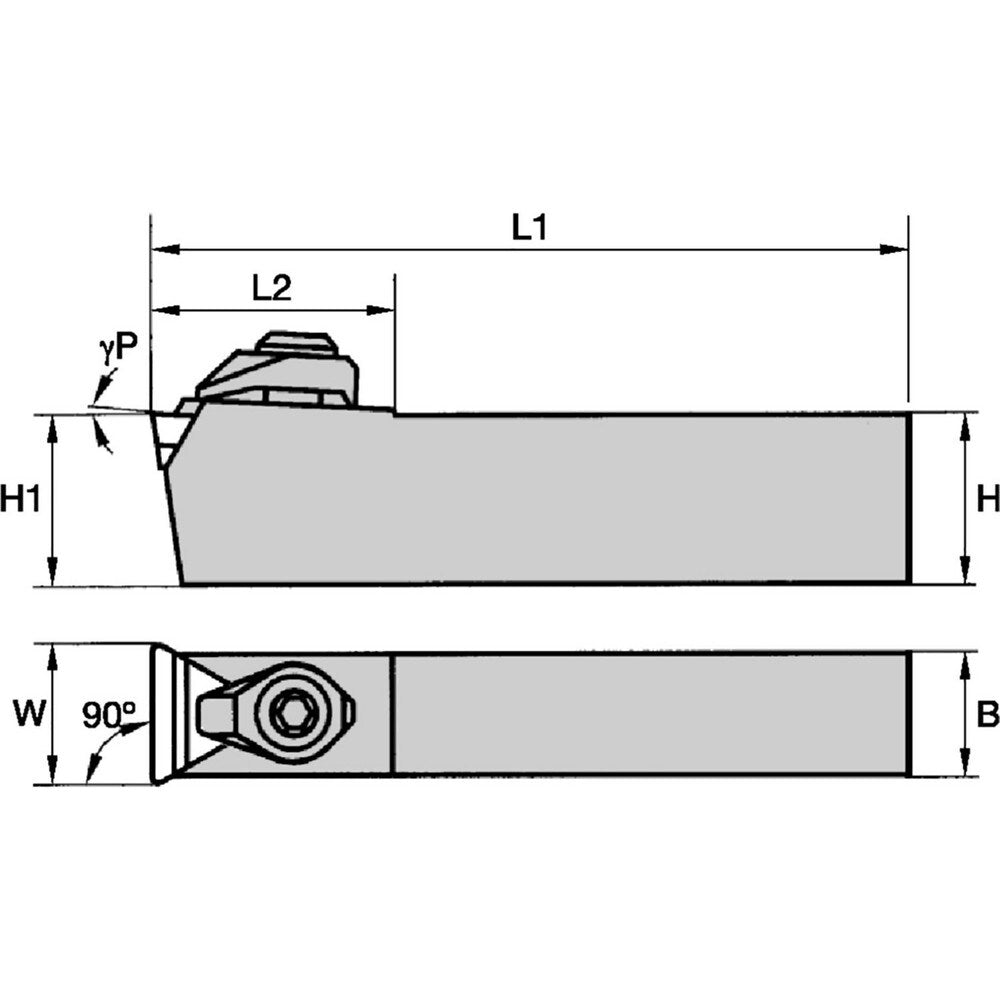

Product Specifications
| Internal or External | External |
| Toolholder Type | External Grooving |
| Insert Seat Size | 16 |
| Hand of Holder | Neutral |
| Cutting Direction | Neutral |
| Maximum Depth of Cut (mm) | 1.00 |
| Minimum Groove Width (mm) | 15.30 |
| Maximum Groove Width (mm) | 15.30 |
| Toolholder Style | 121910 |
| Insert Holding Method | Clamp |
| Insert Compatibility | TP..1603../TP..32.. |
| Compatible Insert Size Code | TP..1603..; TP..32.. |
| Shank Width/Diameter (mm) | 13.00 |
| Shank Height (mm) | 123.00 |
| Series | KS |
| Shank Length (mm) | 123.000 |
| Overall Length (mm) | 150.0000 |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Head Height (mm) | 25.000 |
| Head Length (mm) | 0.00 |
| Primary Workpiece Material | Universal |
| Vibration Dampening | No |
| Multi-Use Application | No |
| Mount Type | Shank |
| Manufacturers Catalog Number | 12191062586 |
| Toolholder Material | Steel |
| Insert Hand | Neutral |
| Coolant Through | No |
| Minimum Bore Diameter (mm) | 0.000 |
| Maximum Bore Depth (mm) | 0.00 |
