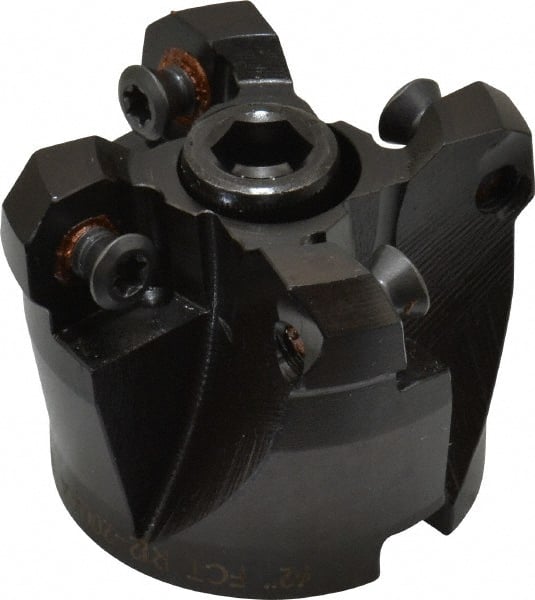

LMT - 2" Cut Diam, 3/4" Arbor Hole, 0.63" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 4 Inserts, RCKX 1606 Insert, Right Hand Cut, 4 Flutes, Series FCT45
Item #: 56444748
Brand: LMT
Model #: 50300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | RCKX 1606 |
| Series | FCT45 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Keyway Width (Decimal Inch) | 0.7500 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | OCKX 0606; RCKX 1606; XCKX 1606; XOKX 1606 |
