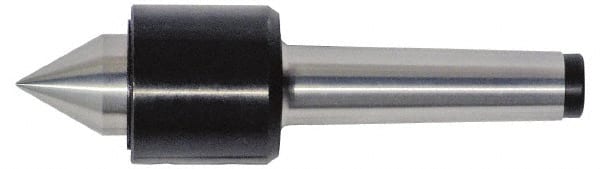

Interstate - MT1 Taper Shank Shank, 1.339" Head Diam, 200 Lb Capacity, Live Center - 6,700 Max RPM, 0.669" Point Diam, 0.79" Point Len, 200 Lb Max Workpc, Standard Point
Item #: 56590342
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT1 |
| Maximum Workpiece Weight (Lb.) | 200.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 0.6690 |
| Tip Diameter (Decimal Inch) | 0.6700 |
| Point Length (Decimal Inch) | 0.7900 |
| Accuracy (mm) | 0.0050 |
| Load Capacity (Lb.) | 200.00 |
| Head Diameter (Decimal Inch) | 1.3390 |
| Head Length (Decimal Inch) | 2.4200 |
| Shank Length (Decimal Inch) | 2.1100 |
| Overall Length (Decimal Inch) | 4.5280 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 6700 |
| Material | Steel |
| Carbide-Tipped | No |
