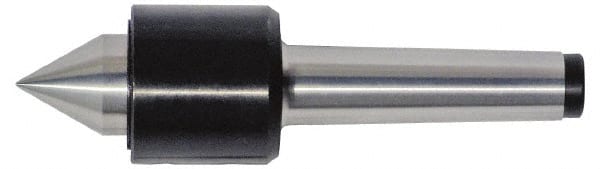

Interstate - MT5 Taper Shank Shank, 2.756" Head Diam, 3,000 Lb Capacity, Live Center - 3,400 Max RPM, 1.772" Point Diam, 1.85" Point Len, 3,000 Lb Max Workpc, Standard Point
Item #: 56590383
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 3000.00 |
| Point Style | Standard |
| Point Diameter (Decimal Inch) | 1.7720 |
| Tip Diameter (Decimal Inch) | 1.7700 |
| Point Length (Decimal Inch) | 1.8500 |
| Accuracy (mm) | 0.0050 |
| Load Capacity (Lb.) | 3000.00 |
| Head Diameter (Decimal Inch) | 2.7560 |
| Head Length (Decimal Inch) | 4.3500 |
| Shank Length (Decimal Inch) | 5.1000 |
| Overall Length (Decimal Inch) | 9.4490 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 3400 |
| Material | Steel |
| Carbide-Tipped | No |
