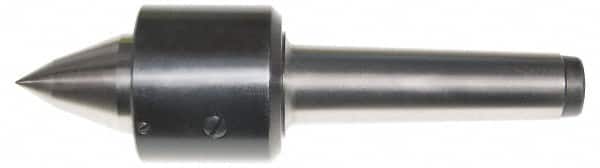

Interstate - MT2 Taper Shank Shank, 1.417" Head Diam, 594 Lb Capacity, Live Center - 6,400 Max RPM, 0.866" Point Diam, 1.33" Point Len, 594 Lb Max Workpc, Long Point
Item #: 56590409
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 594.00 |
| Point Style | Long |
| Point Diameter (Decimal Inch) | 0.8660 |
| Tip Diameter (Decimal Inch) | 0.8700 |
| Point Length (Decimal Inch) | 1.3300 |
| Accuracy (mm) | 0.0050 |
| Load Capacity (Lb.) | 594.00 |
| Head Diameter (Decimal Inch) | 1.4170 |
| Head Length (Decimal Inch) | 1.1500 |
| Shank Length (Decimal Inch) | 2.5200 |
| Overall Length (Decimal Inch) | 5.0590 |
| Included Angle | 60.00 |
| Maximum RPM | 6400 |
| Material | Steel |
