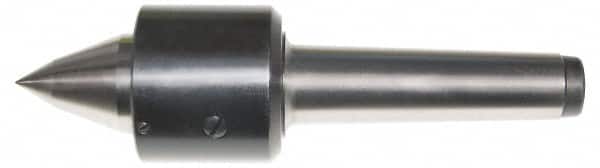

Interstate - MT3 Taper Shank Shank, 1.85" Head Diam, 704 Lb Capacity, Live Center - 5,000 Max RPM, 1.181" Point Diam, 1.81" Point Len, 704 Lb Max Workpc, Long Point
Item #: 56590417
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 704.00 |
| Point Style | Long |
| Point Diameter (Decimal Inch) | 1.1810 |
| Tip Diameter (Decimal Inch) | 1.1800 |
| Point Length (Decimal Inch) | 1.8100 |
| Accuracy (mm) | 0.0050 |
| Load Capacity (Lb.) | 704.00 |
| Head Diameter (Decimal Inch) | 1.8500 |
| Head Length (Decimal Inch) | 1.7200 |
| Shank Length (Decimal Inch) | 3.1900 |
| Overall Length (Decimal Inch) | 6.5750 |
| Included Angle | 60.00 |
| Maximum RPM | 5000 |
| Material | Steel |
