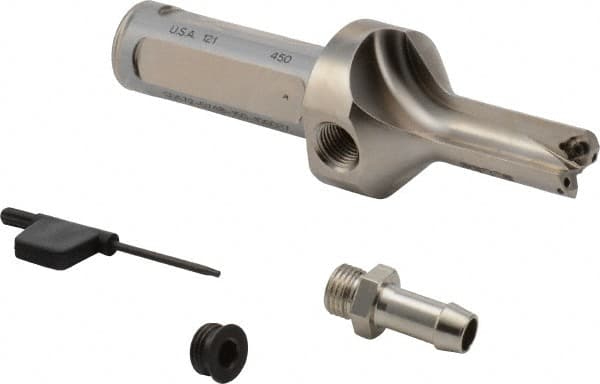

Seco - 1.496" Max Drill Depth, 2xD, 3/4" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 56598691
Brand: Seco
Model #: 36811
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD572 |
| Drill Diameter (Inch) | 3/4 |
| Drill Diameter (Decimal Inch) | 0.7500 |
| Maximum Drill Depth (Decimal Inch) | 1.4960 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8660 |
| Overall Length/Projection (Decimal Inch) | 5.9130 |
| Insert Compatibility (Outside or Peripheral) | WCMX 030208.. |
| Insert Compatibility | WCMX 040208-86 |
| Flute Length (Decimal Inch) | 1.6900 |
| Body Length (Decimal Inch) | 2.8740 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 1.7720 |
| Series | PerfoMAX |
