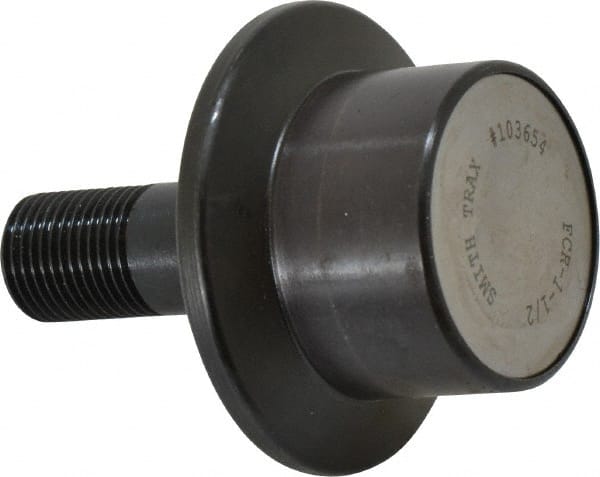

Accurate Bushing - 1-1/2" Roller Diam x 1-3/16" Width, 5/8" Stud Diam x 1-1/2" Length, Flanged Load Roller - Steel, 3/4" Thread Length, 5/8-18 Thread, 2,520 Lb Dynamic Cap, 1,370 Lb Static Cap
Item #: 56612096
Brand: Accurate Bushing
Model #: FCR-1-1/2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Flanged Load Roller |
| Roller Diameter (Inch) | 1-1/2 |
| Roller Width (Decimal Inch) | 1.1875 |
| Stud Diameter (Decimal Inch) | 0.6250 |
| Dynamic Load Capacity (Lb.) | 2520 |
| Static Load Capacity (Pounds) | 1370.00 |
| Thread Size | 5/8-18 |
| Material | Steel |
| Flange Diameter (Inch) | 2-3/16 |
| Flange Diameter (Decimal Inch) | 2.1875 |
| Flange Thickness (Decimal Inch) | 0.3438 |
| Stud Length (Decimal Inch) | 1.5000 |
| Stud Length (Inch) | 1-1/2 |
| Thread Length (Inch) | 3/4 |
