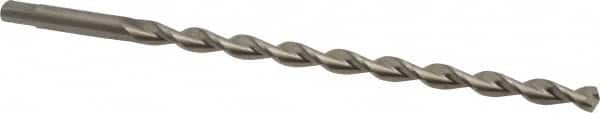

Chicago-Latrobe - 17/64" 135° Parabolic Flute High Speed Steel Taper Length Drill Bit
Item #: 80907173
Brand: Chicago-Latrobe
Model #: 68817
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 17/64 |
| Drill Bit Size (Decimal Inch) | 0.2656 |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Tanged |
| Through Coolant | No |
| Point Type | Split Point |
| Flute Length (Inch) | 5 |
| Overall Length (Inch) | 6-1/4 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0010 |
| Web Thinning | Web-Thinned |
| Series/List | 120DH |
