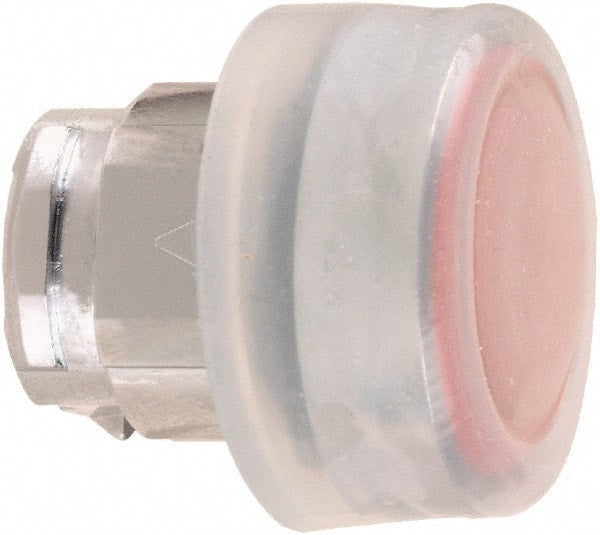

Schneider Electric - 22mm Mount Hole, Extended Straight, Pushbutton Switch Only - Round, Red Pushbutton, Nonilluminated, Momentary (MO)
Item #: 56774342
Brand: Schneider Electric
Model #: ZB4BP4
Exact Tooling IR#: 04
Features and Benefits
Pushbutton switches are designed with the front side of the switch outfacing on the panel. Used in conjunction with a contact block, these switches are designed to activate machinery by button that is pressed and released. Applications include starting and stopping the machine.
Nonilluminated pushbuttons do not feature a light within the button.They are commonly used in areas where added light is not needed.
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (mm) | 22 |
| Switch Type | Pushbutton Switches Only |
| Pushbutton Type | Extended (Straight) |
| Pushbutton Shape | Round |
| Pushbutton Color | Red |
| Operator Illumination | NonIlluminated |
| Operation Type | Momentary (MO) |
| Pushbutton Material | Metal |
| NEMA Rating | 13; 4X |
| Standards Met | Bureau Veritas; CSA; CSA C22.2 No. 14; DNV; EN/IEC 60947-1; EN/IEC 60947-5-1; EN/IEC 60947-5-4; EN/IEC 60947-5-5; GL; JIS C 4520; LROS; RINA; UL 508; UL Listed |
