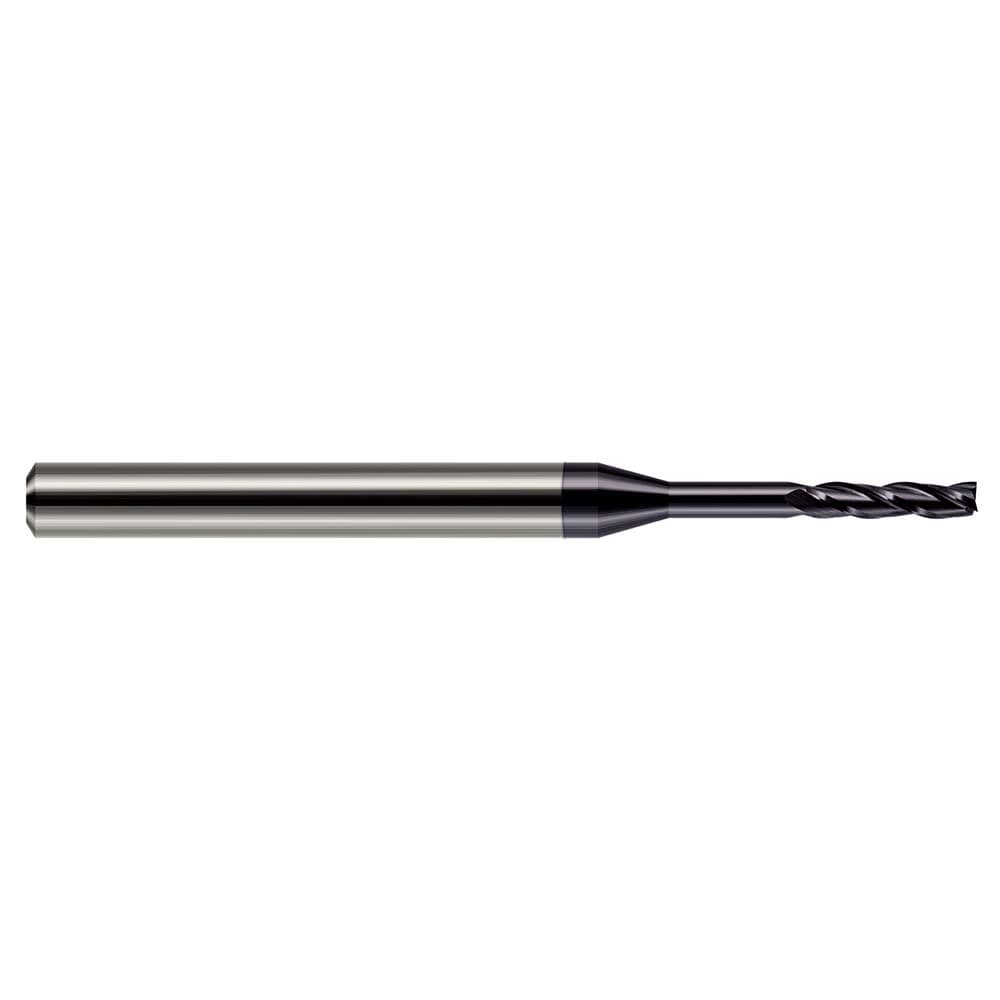

Square End Mill: 0.50 mm Dia, 3 Flute, Solid Carbide
Item #: 05786330
Brand: Harvey Tool
Model #: 876620-C3
Product Specifications
| Mill Diameter (mm) | 0.50 |
| Mill Diameter (Decimal Inch) | 0.0200 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.1000 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; CFRP Materials; Steel |
| Primary Workpiece Material Code | P; C; K; M; N |
| Coating/Finish | AlTiN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Reach Length (Decimal Inch) | 0.1600 |
| Series | Miniature End Mills - Square - Long Reach, Long Flute |
| System Of Measurement | Decimal Inch |
| UNSPSC Code | 27112803 |
