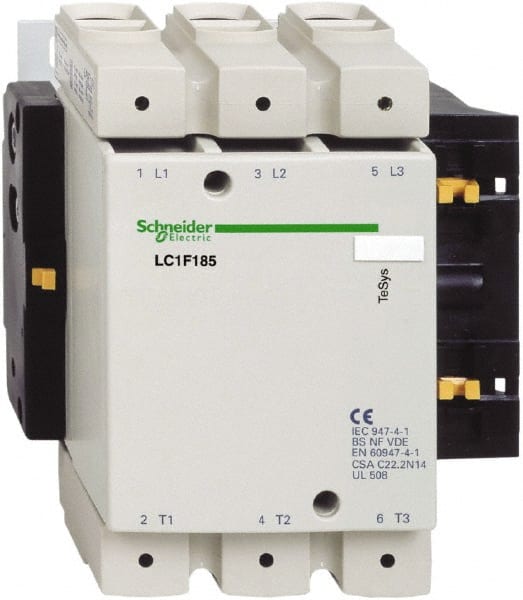

Schneider Electric - 3 Pole, 48 Coil VAC, 275 Amp at 440 VAC, Nonreversible IEC Contactor - Bureau Veritas, CCC, CSA, DNV, EN/IEC 60947-1, EN/IEC 60947-4-1, GL, JEM 1038, LROS, RINA, RMRoS, RoHS Compliant, UL Listed
Item #: 56807225
Brand: Schneider Electric
Model #: LC1F185E7
Exact Tooling IR#: 04
Features and Benefits
Non-reversing contactors are designed with one phase line that connects to and runs voltage through the motor. The contactor is used to turn a motor on and off.
| Product Specifications | |
|---|---|
| Number of Poles | 3 |
| Coil Voltage | 48 VAC |
| Amperage | 275 @ 440 VAC |
| Action | NonReversible |
| Overall Height (mm) | 174 |
| Overall Width (mm) | 168 |
| Overall Depth (mm) | 181 |
| Standards Met | Bureau Veritas; CCC; CSA; DNV; EN/IEC 60947-1; EN/IEC 60947-4-1; GL; JEM 1038; LROS; RINA; RMRoS; RoHS Compliant; UL Listed |
