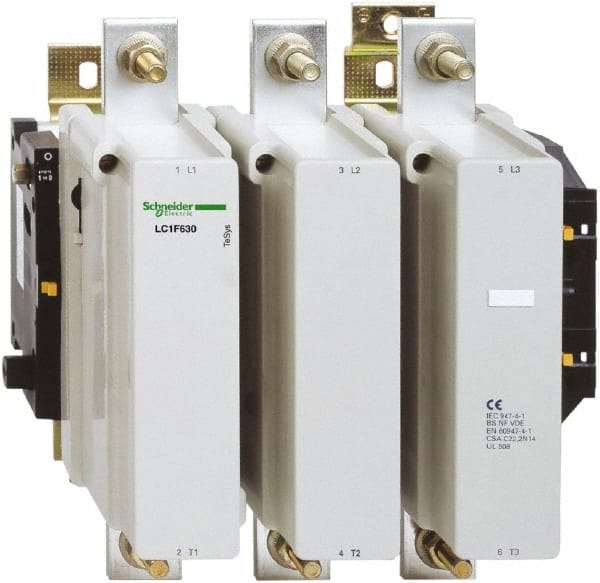

Schneider Electric - 3 Pole, 110 Coil VAC at 50-400 Hz and 110 Coil VDC, 1,000 Amp at 440 VAC, 560 Amp at 440 VAC and 630 Amp at 440 VAC, Nonreversible IEC Contactor
Item #: 56827918
Brand: Schneider Electric
Model #: CR1F630F7
Exact Tooling IR#: 04
Features and Benefits
Non-reversing contactors are designed with one phase line that connects to and runs voltage through the motor. The contactor is used to turn a motor on and off.
Product Specifications
3 Pole, 110 Coil VAC at 50-400 Hz and 110 Coil VDC, 1,000 Amp at 440 VAC, 560 Amp at 440 VAC and 630 Amp at 440 VAC, Nonreversible IEC Contactor -
| Number of Poles | 3 |
| Coil Voltage | 110 VAC @ 50-400 Hz; 110 VDC |
| Amperage | 1000 @ 440 VAC; 560 @ 440 VAC; 630 @ 440 VAC |
| Action | NonReversible |
| Overall Height (mm) | 304 |
| Overall Width (mm) | 309 |
| Overall Depth (mm) | 255 |
