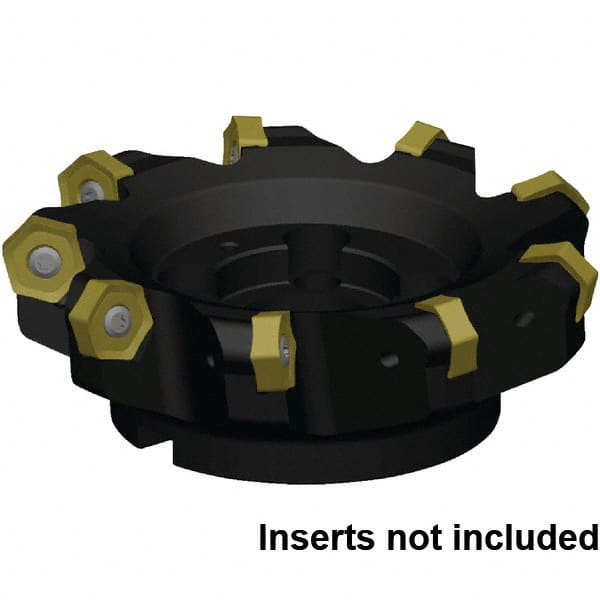

Kennametal - 10 Inserts, 200mm Cut Diam, 60mm Arbor Diam, 8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 45° Lead Angle, 63mm High, HNPJ130720ANSNGD Insert Compatibility, Through Coolant, Series Dodeka MAX
Item #: 56877640
Brand: Kennametal
Model #: 4060912
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200.00 |
| Cutting Diameter (Decimal Inch) | 7.8740 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 45 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | HNPJ130720ANSNGD |
| Series | Dodeka MAX |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw/Clamp |
| Number of Flutes | 10 |
| Rake | Negative |
| Hub Diameter (mm) | 130.00 |
| Hub Diameter (Decimal Inch) | 5.1180 |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum Body Diameter (Decimal Inch) | 8.3470 |
| Maximum RPM | 3180 |
| Toolholder Material | Steel |
