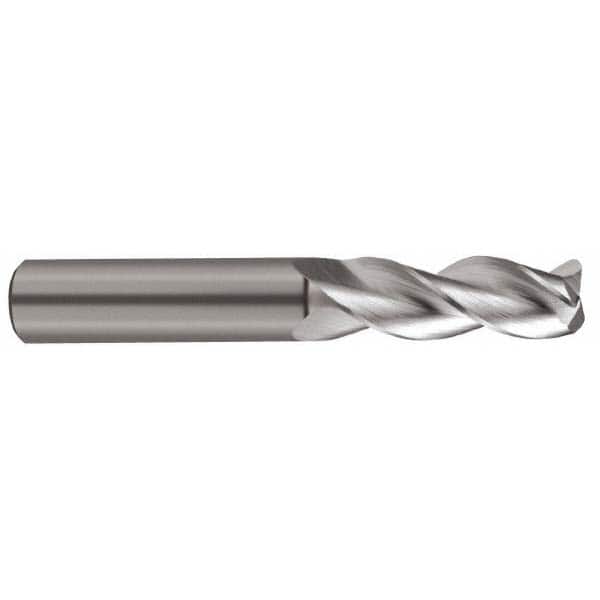

Corner Radius End Mill: 3/4″ Dia, 1-5/8″ LOC, 0.12″ Radius, 3 Flutes, Solid Carbide 4″ OAL, 3/4″ Shank Dia, 38 ° Helix, TiB2 Coated, Corner Radius End, Series 43CR
Item #: 56923238
Brand: SGS
Model #: 34817
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Length of Cut (Inch) | 1-5/8 |
| Corner Radius (Decimal Inch) | 0.1200 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | 38 |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Maximum Helix Angle | 38.00 |
| Corner Radius Tolerance | +0.00000 to -0.00200 in |
| Mill Diameter Tolerance | +0.000000 to -0.000510 in |
| Shank Diameter Tolerance | +0.00000/-0.00051 in |
| Primary Workpiece Material | Non-Ferrous Metal |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | 43CR |
| Single Or Double End | Single |
| Manufacturers Catalog Number | 34810 |
| Coating/Finish | TiB2 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.6250 |
