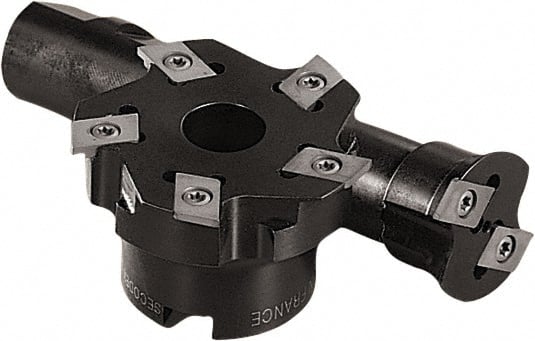

Seco - Shell Mount Connection, 1/16" Cutting Width, 63mm Cutter Diam, 0.8661" Hole Diam, Indexable Slotting Cutter - R335.15 Toolholder, R335.15-13 Insert, Right Hand Cutting Direction
Item #: 56973381
Brand: Seco
Model #: 11752
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 1.60 |
| Cutting Width (Decimal Inch) | 0.0630 |
| Maximum Depth of Cut (mm) | 0.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0000 |
| Cutter Diameter (mm) | 63.00 |
| Cutter Diameter (Decimal Inch) | 2.4803 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Toolholder Style | R335.15 |
| Series | R335.15 |
| Insert Style | R335.15-13 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 5 |
| Cutting Direction | Right Hand |
| Maximum RPM | 17300 |
| Minimum Cutting Width (Decimal Inch) | 0.0630 |
| Maximum Cutting Width (Decimal Inch) | 0.1043 |
| Maximum Cutting Width (mm) | 2.65 |
| Radius | No |
| Rake | Neutral |
| Complete Insert Compatibility1 | R335.15-13110FG-E08; R335.15-13130FG-E08; R335.15-13160FG-E08; R335.15-13185FG-E08; R335.15-13185FG-M10; R335.15-13215FG-E08; R335.15-13215FG-M10; R335.15-13265FG-E08; R335.15-13265FG-M10 |
