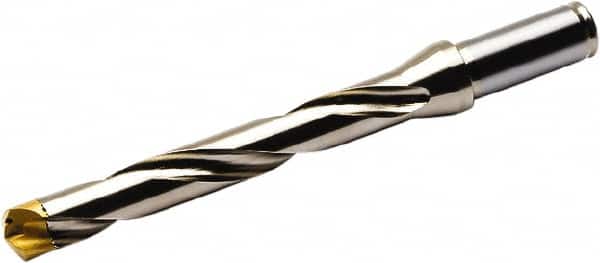

Seco - 22 to 23.99mm Diam, 7xD, 175mm Max Depth, 1" Shank Diam, 7.421" Flute, 10.413" OAL, Replaceable Tip Drill - SD107 Toolholder, Series Crownloc
Item #: 56975162
Brand: Seco
Model #: 17272
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | Crownloc |
| Minimum Drill Diameter (mm) | 22.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.8661 |
| Maximum Drill Diameter (mm) | 23.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.9445 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 6.8898 |
| Maximum Drill Depth (mm) | 175.00 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Toolholder Style | SD107 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (Decimal Inch) | 7.4210 |
| Body Length (Decimal Inch) | 8.2090 |
| Toolholder Coating | TiAlN |
| Overall Length (Decimal Inch) | 10.4130 |
| Shank Length (Decimal Inch) | 2.2050 |
