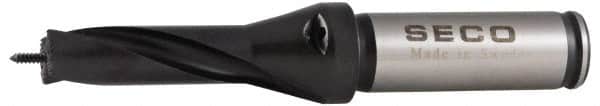

Seco - 12 to 12.49mm Diam, 3xD, 1.57" Max Depth, 5/8" Shank Diam, 1.89" Flute, 4.567" OAL, Replaceable Tip Drill - SD100 Insert, SD103 Toolholder, Series SD103
Item #: 56983406
Brand: Seco
Model #: 17629
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SD103 |
| Minimum Drill Diameter (mm) | 12.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (mm) | 12.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4917 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.5700 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | SD100 |
| Toolholder Style | SD103 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (Decimal Inch) | 1.8900 |
| Body Length (Decimal Inch) | 2.6770 |
| Overall Length (Decimal Inch) | 4.5670 |
| Shank Length (Decimal Inch) | 1.8900 |
