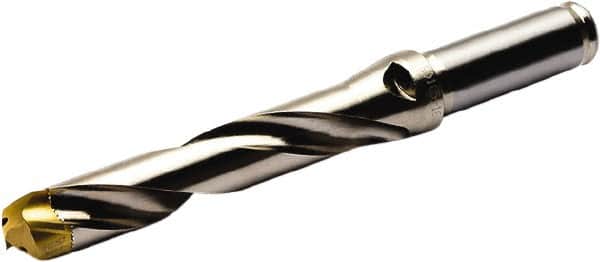

Seco - 13 to 13.99mm Diam, 5xD, 65mm Max Depth, 16mm Shank Diam, 73.8mm Flute, 141.8mm OAL, Replaceable Tip Drill - SD105 Toolholder, Series Crownloc
Item #: 56987621
Brand: Seco
Model #: 17554
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | Crownloc |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Diameter (mm) | 13.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5508 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.5591 |
| Maximum Drill Depth (mm) | 65.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Toolholder Style | SD105 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (mm) | 73.80 |
| Flute Length (Decimal Inch) | 2.9055 |
| Body Length (mm) | 93.80 |
| Body Length (Decimal Inch) | 3.6929 |
| Toolholder Coating | TiAlN |
| Overall Length (mm) | 141.80 |
| Overall Length (Decimal Inch) | 5.5827 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
