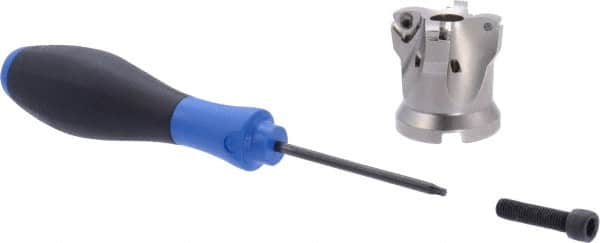

Seco - 4 Inserts, 1" Cutter Diam, 0.06" Max Depth of Cut, Indexable High-Feed Face Mill - 1/2" Arbor Hole Diam, 0.03" Keyway Width, 1.6" High, R220.21 Toolholder, 218.19-125.. Inserts, Series R220.21
Item #: 56993462
Brand: Seco
Model #: 07338
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Arbor Hole Diameter (Decimal Inch) | 0.5000 |
| Overall Height (Decimal Inch) | 1.6000 |
| Series | R220.21 |
| Cutter Style | R220.21 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | 218.19-125.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 17600 |
| Number of Flutes | 4 |
| Maximum Body Diameter (Decimal Inch) | 1.5000 |
| Through Coolant | Yes |
| Keyway Width (Decimal Inch) | 0.0300 |
