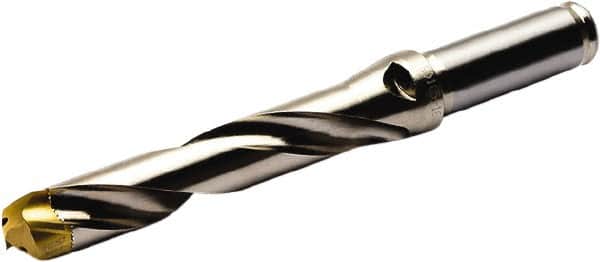

Seco - 16 to 16.99mm Diam, 5xD, 80mm Max Depth, 16mm Shank Diam, 91mm Flute, 159mm OAL, Replaceable Tip Drill - SD100 Insert, SD105 Toolholder, Series SD105
Item #: 56999949
Brand: Seco
Model #: 17560
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SD105 |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 16.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6689 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 80.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | SD100 |
| Toolholder Style | SD105 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (mm) | 91.00 |
| Body Length (mm) | 111.00 |
| Overall Length (mm) | 159.00 |
| Shank Length (mm) | 48.00 |
