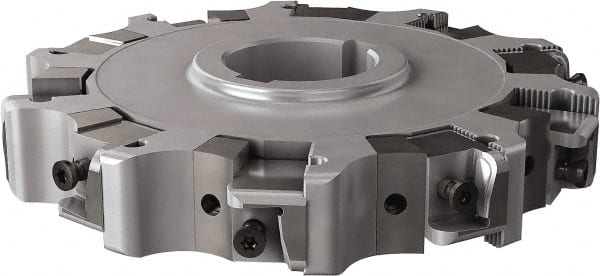

Seco - Arbor Hole Connection, 1.26" Cutting Width, 1.791" Depth of Cut, 6" Cutter Diam, 1-1/2" Hole Diam, 5 Tooth Indexable Slotting Cutter - 335.25 Toolholder, XNHQ, LNHQ Insert, Right Hand Cutting Direction
Item #: 57005308
Brand: Seco
Model #: 16385
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 32.00 |
| Cutting Width (Decimal Inch) | 1.2600 |
| Cutting Width (Inch) | 1.2600 |
| Maximum Depth of Cut (Decimal Inch) | 1.7910 |
| Cutter Diameter (Inch) | 6 |
| Hole Diameter (mm) | 38.10 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 5 |
| Toolholder Style | 335.25 |
| Series | 335.25 |
| Insert Style | XNHQ; LNHQ |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Radius | Yes |
