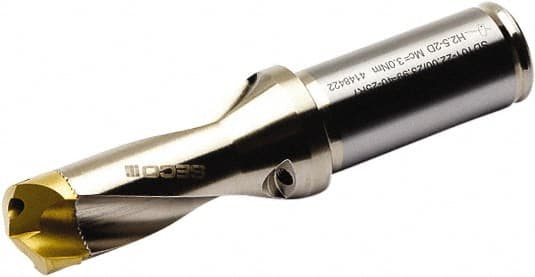

Seco - 12 to 12.49mm Diam, 1.5xD, 20mm Max Depth, 5/8" Shank Diam, Replaceable Tip Drill - SD101 Toolholder, Series Crownloc
Item #: 57012460
Brand: Seco
Model #: 17570
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | Crownloc |
| Minimum Drill Diameter (mm) | 12.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (mm) | 12.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4917 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.7874 |
| Maximum Drill Depth (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Toolholder Style | SD101 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Toolholder Coating | TiAlN |
