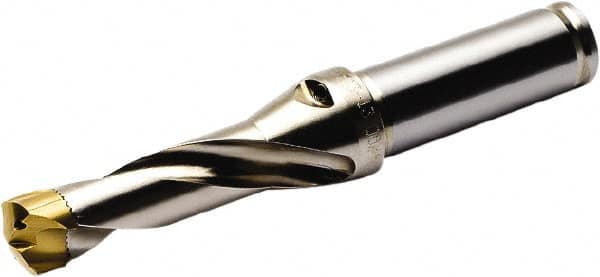

Seco - 12 to 12.49mm Diam, 3xD, 40mm Max Depth, 16mm Shank Diam, 48mm Flute, 116mm OAL, Replaceable Tip Drill - SD103 Toolholder, Series Crownloc
Item #: 57026106
Brand: Seco
Model #: 17535
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | Crownloc |
| Minimum Drill Diameter (mm) | 12.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (mm) | 12.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4917 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.5748 |
| Maximum Drill Depth (mm) | 40.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Toolholder Style | SD103 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (mm) | 48.00 |
| Flute Length (Decimal Inch) | 1.8898 |
| Body Length (mm) | 68.00 |
| Body Length (Decimal Inch) | 2.6772 |
| Toolholder Coating | TiAlN |
| Overall Length (mm) | 116.00 |
| Overall Length (Decimal Inch) | 4.5669 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
